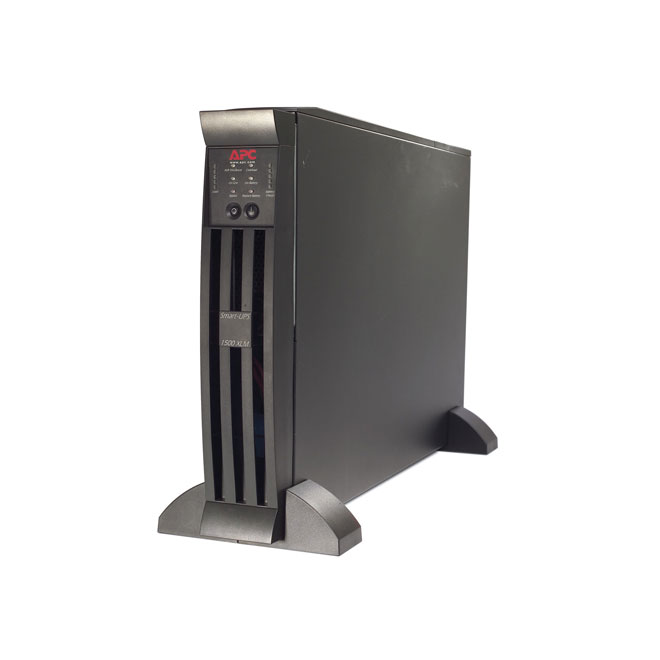

APC Smart-UPS XL Modular 1500VA 230V - SUM1500RMXLI2U
Smart-UPS® XL 1500VA Line Interactive UPS is high performance power protection with scalable runtime for servers, and voice and data networks. It protects your data by supplying reliable, network-grade power with scalable run-time in tower and rack mount form factors.
Voice over Internet Protocol (VoIP), e-commerce, WiFi ("hotspots", WLAN/ WWAN, and mixed wireless), and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL 1500VA. This is also the perfect UPS for fileservers (Intel or UNIX based), minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime.
With pure sine-wave output ensuring compatibility with all connected devices. Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS XL 1500VA is a UPS you can count on.
Check suitability using APC Product Selector Shutdown facility on a BCM R4 or later or BCM50 requires a USB 1.1 hub
Key Features | |
Product description | APC Smart-UPS XL Modular 1500VA 230V |
Device Type | Smart-UPS XL Modular |
Form Factor | 2U Rackmount |
Surge Protection and Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Control Panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators |
Typical recharge time | 3 hour(s) |
Typical backup time |
Full load : 11.9 minutes Half load : 28.3 minutes |
Connection(s) |
9 x power IEC 320 EN 60320 C13 1 x power IEC 320 EN 60320 C19 1 x power IEC 320 EN 60320 C14 1 x management - RS-232 - 9 pin D-Sub (DB-9) 1 x USB - Ethernet 10Base-T/100Base-TX 1 x network - RJ-45 1 ( 1 ) x SmartSlot |
Weight | 47 kg |
Dimensions (WxDxH) | 43 cm x 68 cm x 9 cm |
Manufacturer part number | SUM1500RMXLI2U |
Power | 1980 Watts / 2200 VA, Input 230V / Output 230V |
Manufacturer Warranty | 2 year repair warranty |
What’s included :
- APC Smart-UPS XL Modular 1500VA - UPS - 1.425 kW - 1500 VA
- Rack Mounting Brackets,
- Rack Mounting support rails,
- Smart UPS signalling RS-232 cable,
- USB cable,
- Web/SNMP Management Card
